4mm Wall Aluminum Composite Panels With Aluminum Box Bar Backing Framework

The combination of 4mm wall aluminum composite panels (ACP/ACM) and aluminum box bar backing framework is a high-performance, durable solution for modern wall cladding systems. This integrated system combines the lightweight versatility of 4mm ACP panels with the structural stability of aluminum box bar framework, creating a seamless, long-lasting wall cladding that meets the demands of both interior and exterior architectural applications-from commercial facades to residential interiors.

This cladding system consists of two core components: 4mm aluminum composite panels (the visible cladding surface) and an aluminum box bar backing framework (the structural support system). The two components are designed to work in perfect harmony, ensuring easy installation, superior structural integrity, and a sleek, professional finish.

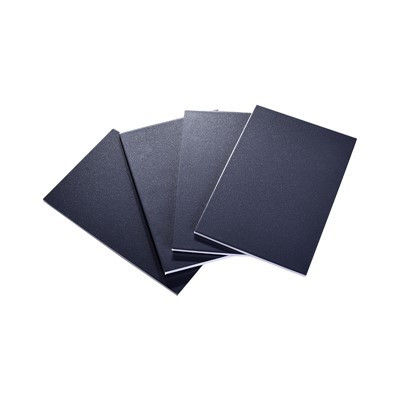

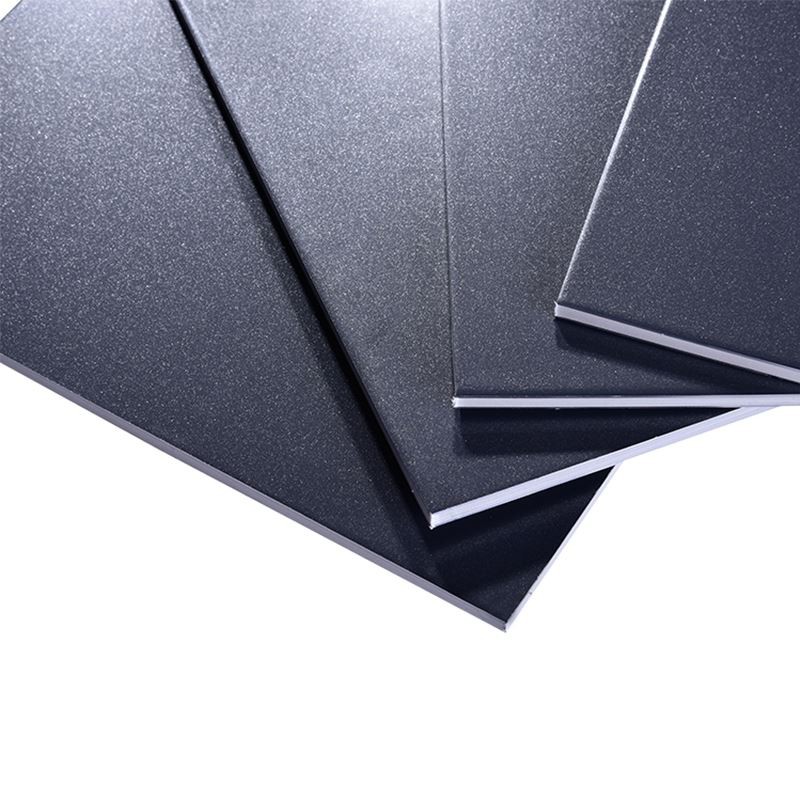

1. 4mm Aluminum Composite Wall Panels

Total Thickness: 4mm (optimal for wall cladding, balancing rigidity and lightweight design)

Aluminum Skin Thickness: 0.25mm–0.50mm (customizable; 0.3mm is standard for balanced strength and cost-effectiveness)

Core Material: PE (polyethylene, standard for general use), FR (fire-retardant PE), or A2-grade non-combustible mineral core (for high-rise/commercial fire code compliance)

Surface Finishes: PVDF (fluorocarbon) coating, polyester coating, wood grain, stone texture, metallic, matte, or glossy finishes-all engineered for weather resistance and color retention

Standard Sizes: 1220mm × 2440mm, 1220mm × 3050mm, 1220mm × 3660mm; custom sizes available

2. Aluminum Box Bar Backing Framework

The aluminum box bar framework serves as the structural backbone for the 4mm ACP panels, providing stable support, ensuring flatness, and facilitating secure installation. Made from high-quality aluminum alloy (6061 or 6063), the box bars are lightweight yet rigid, resistant to corrosion, and designed to withstand outdoor environmental stressors.

Material: 6061/6063 aluminum alloy (anti-corrosive, high strength, lightweight)

Cross-Section Sizes: Common sizes include 50×50mm, 60×40mm, 80×60mm (customizable based on panel size and load requirements)

Thickness: 1.5mm–3.0mm (varies by load capacity; thicker bars for larger panel spans or exterior high-wind areas)

Surface Treatment: Anodized, powder-coated, or PVDF-coated (matching the ACP panel finish for aesthetic consistency)

1. Superior Structural Stability

The aluminum box bar framework provides robust support for the 4mm ACP panels, preventing warping, sagging, or deformation-even over large spans. The box bar design distributes weight evenly across the wall surface, ensuring the cladding system remains flat and stable for decades, even in harsh outdoor conditions (high winds, extreme temperatures).

2. Easy & Efficient Installation

The framework is pre-cut, pre-drilled, and designed for quick assembly, while the 4mm ACP panels are lightweight and easy to attach to the box bars using screws, rivets, or adhesive. This integrated design reduces on-site installation time, lowers labor costs, and ensures a seamless, precise fit between panels and framework.

3. Corrosion Resistance & Longevity

Both the 4mm ACP panels and aluminum box bar framework are made from corrosion-resistant aluminum, with optional PVDF or anodized finishes for enhanced protection. This makes the system ideal for coastal, industrial, or urban environments, where moisture, salt spray, or pollution could damage traditional cladding systems. The entire system offers a service life of 15–20 years with minimal maintenance.

4. Aesthetic Versatility & Seamless Finish

The aluminum box bar framework can be installed to create hidden joints between 4mm ACP panels, resulting in a sleek, continuous wall surface. The framework's finish can be matched to the ACP panels (e.g., same color or texture), ensuring visual consistency and enhancing the overall architectural appeal. The system supports both flat and curved wall designs, allowing for creative cladding solutions.

5. Lightweight & Load-Saving

Compared to traditional cladding systems with steel frameworks, the aluminum box bar framework is significantly lighter, reducing the overall load on the building structure. When paired with the lightweight 4mm ACP panels, this system minimizes structural stress, making it suitable for both new construction and renovation projects (where structural modifications are limited).

6. Fire Safety Compliance

For projects with strict fire safety requirements, the system can be configured with FR or A2-grade non-combustible 4mm ACP panels, paired with fire-resistant aluminum box bars. This combination meets international fire codes, ensuring the cladding system is self-extinguishing, produces low smoke, and provides enhanced fire protection for the building.

This integrated cladding system is widely used in:

Exterior facades of commercial buildings, high-rises, hotels, and airports

Interior decorative walls in shopping malls, office lobbies, and luxury residences

Renovation and retrofit of old building exteriors (to improve aesthetics and performance)

Curtain wall systems and accent walls for architectural enhancement

Coastal and industrial buildings (thanks to superior corrosion resistance)

Framework Installation: Install the aluminum box bars vertically and horizontally (spaced 600–1200mm apart, depending on panel size) onto the building substrate, ensuring level alignment and secure fastening. Use expansion bolts or anchor screws for stable attachment.

Panel Installation: Attach the 4mm ACP panels to the box bar framework using self-tapping screws (hidden or exposed) or structural adhesive. Ensure proper spacing between panels (5–10mm) for thermal expansion and contraction.

Sealing: Use weather-resistant silicone sealant to seal panel joints, preventing water infiltration (critical for exterior applications).

Maintenance: Regularly clean the ACP panels with mild detergent and a soft cloth. Inspect the framework annually for loose fasteners or corrosion, and touch up any damaged finishes as needed.

The 4mm wall aluminum composite panels with aluminum box bar backing framework offer a perfect blend of structural stability, aesthetic versatility, and long-lasting performance. This integrated system is the ideal choice for architectural projects that demand durability, efficiency, and a sleek, professional finish.
