Aluminum Composite Panel

Advantages of Aluminum Composite Panel



Weather and Temperature Resistance
The first advantage of ACM mateial is their durability in extreme weather and temperatures. Extreme climate changes do not affect the panels’ shape, quality, and size.



Flexibility
Aluminum is malleable, which makes it ideal for cutting and shaping. This feature makes aluminium composite board easily customizable. Due to their flexibility, there’s no limit to the building designs on which acm  can be applied.



Lightweight
aluminium composite board is very light and therefore adds minimal weight to a building structure. This lowers the seismic force on the building. Their weight also makes them easy to transport and carry during installation.



Economical
aluminium acp sheet are cost effective for the high quality panels provided. They are also long-lasting, which saves on frequent replacement costs.



Low Maintenance
Exposure to air causes aluminum to form a thin layer of aluminum oxide, which is corrosion-resistant. aluminium acp sheetare typically prefinished with a variety of paint types and colors. aluminium acp sheet do not need frequent maintenance.

Easy Installation
Their flexibility and ease of customization make ACM easy to install. Aluminum is easy to cut, bend, and drill. This gives ACM a range of size, shape, and design possibilities, making them very useful in construction.



Cost-Effective
ACM /ACPis a cost-effective construction solution for cladding. The designed attachment systems allow for lower labor costs compared to some other metal cladding applications.



High Functionality
Another advantage of ACM /ACP is that it is highly functional. There is a large variety of ACM/ACP. It can provide a smooth upscale appearance to any building. There is a large pallet of colors and finishes available.



Environmental friendly
ACM panelling are recyclable, which makes it environmentally friendly. Extra ACM material can be recycled during manufacturer and fabrication. If an existing building facade with ACM panelling is replaced in the future, the ACM panelling metal panels can be recycled.

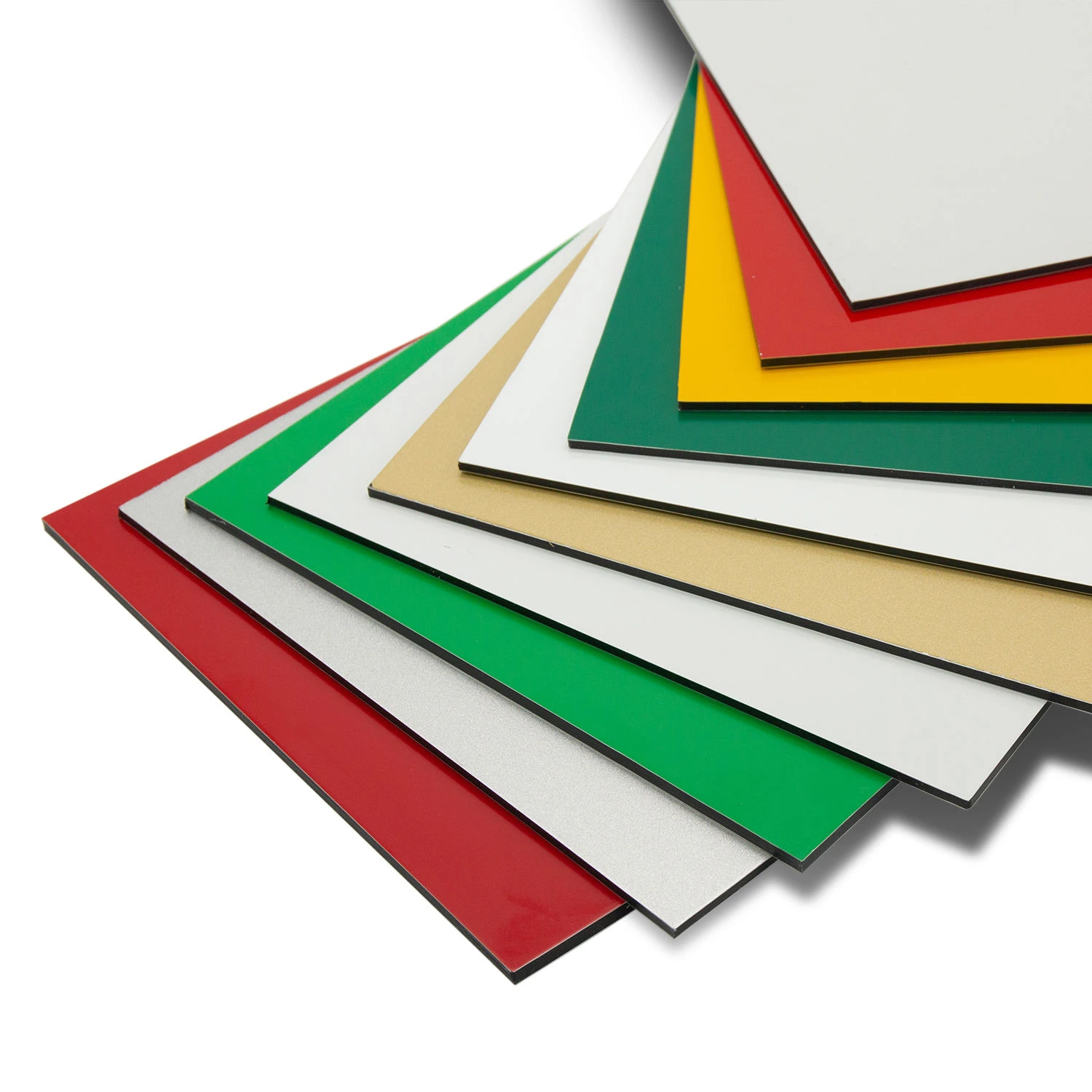

Variety in Colors and Textures
The last but not least advantage of aluminum composite panels is that they are available in several colors and textures. This means buyers can choose whatever range of colors pleases them most.

Applications of Aluminum Composite Panel

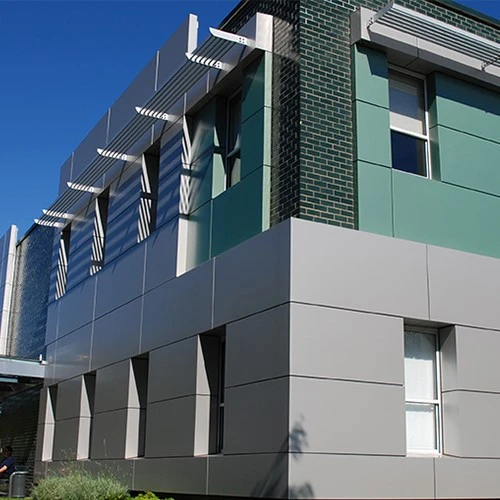

Building Facades and Cladding

You often see aluminium composite panels on the outside of buildings. These panels help protect the building from rain, wind, and sun. Many architects choose aluminium composite panels for exterior applications because they look modern and clean.

Interior Design and Decoration

You can use aluminium composite panels inside buildings, too. These panels make great choices for interior wall panelling. You can create smooth, stylish walls in offices, hospitals, or homes.

Signage and Advertising

You see aluminium composite panels in many signs and billboards. These panels give you a smooth surface for printing graphics and text. They last a long time, even in tough weather.

Precautions for the Use of Aluminum Composite Panels





Keep the Coating Safe

This is a maintenance procedure for the ACP’s installation section. If you used a sealant to install the ACP, you should wait 40-45 days before removing the protective film. This will protect it from stains caused by sealants that have solidified on the surface.



Keep the ACP Sheet’s Color

When wiping the surface of the ACP during cleaning, gentle cloths are recommended. This procedure will not cause any scratch damage to the panel’s color paint. Cleaning solutions including potassium hydroxide or caustic soda are not recommended.



Maintain a Cleaning Routine

If you’re using a sponge, squeegee, or microfiber, make sure to clean the ACP’s surface from top to bottom. Drips from the cleaning solution will be reduced, and the panel will look as good as new.



Cleaning Detergents Should Be Used

When washing aluminum composite panels on the outside and inside, use a light detergent. Don’t forget to do a short pre-test with the detergent before using it all over. The dust and other harsh stains shown on the panel will be gently removed with this cleaning detergent.

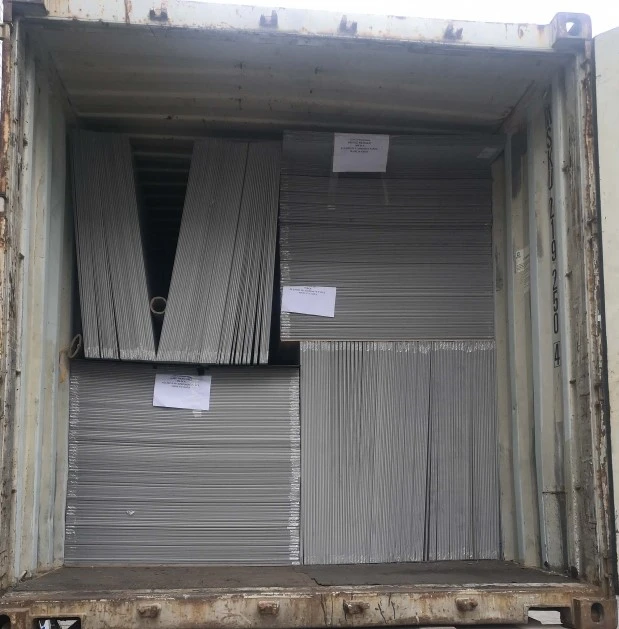

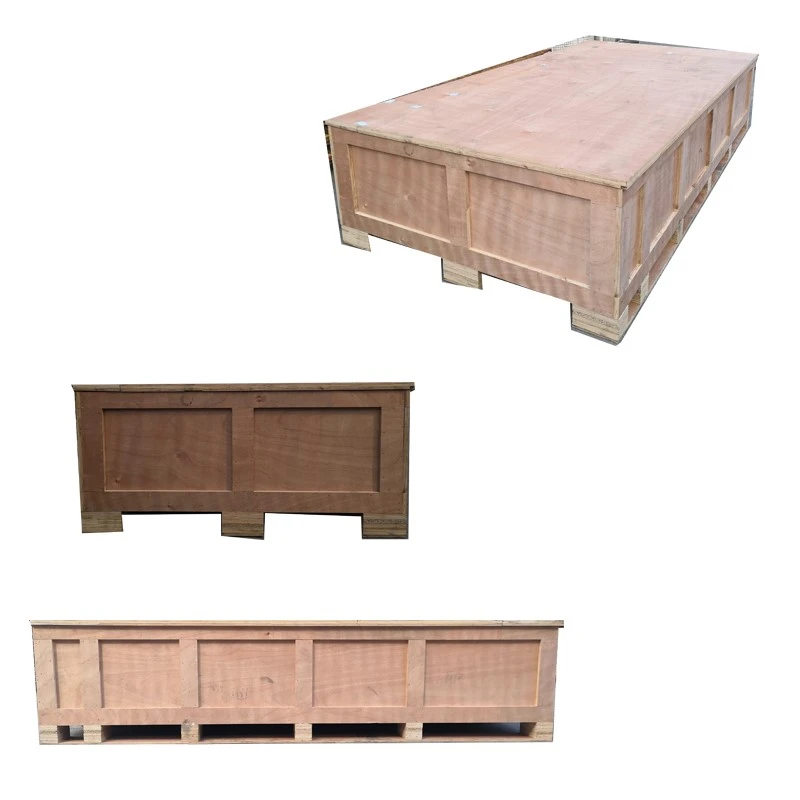

Aluminum Composite Panel Package and Shipment



20 GP lading 1500x5000MM pallets

20GP loading 6 pallets 1220x2440mm

nake loading 1860sheets 4mm 1220x2440mm

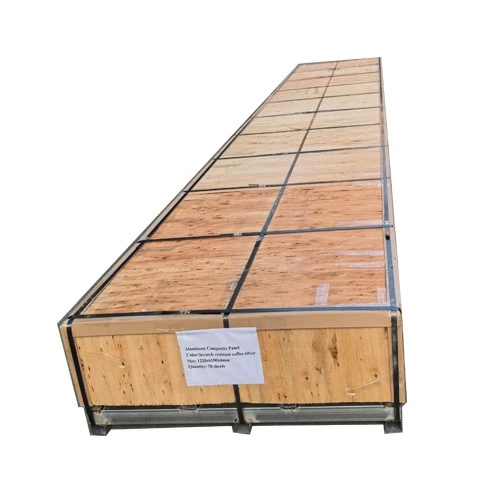

LCL SHIPMENT 1500MMX5800MM

LCL SHIPMENT 1220X2440X4MM 100PSC

20GP 1220X2440X4MM 1500SHEETS

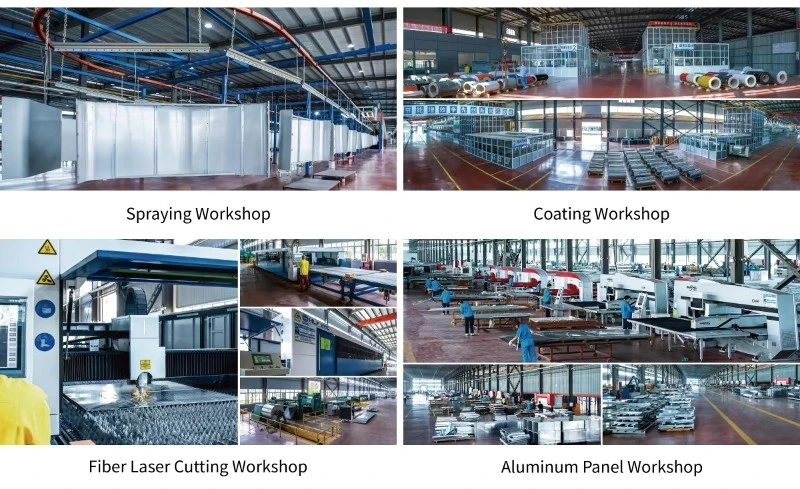

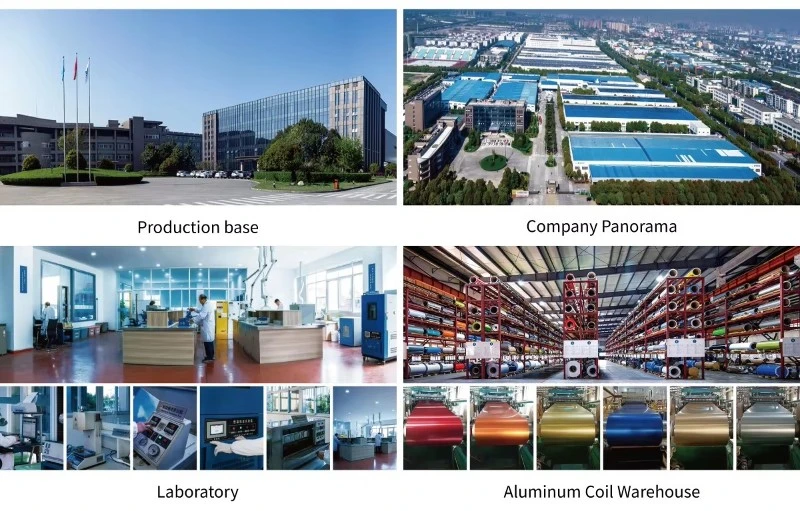

The company was established in September 2010, located in Guangzhou, the area of more than 120 acres, notes The registered capital is 31.88 million yuan.

12 Facts About Aluminum Composite Panels

 1. Its sandwich‑layer construction delivers high stiffness without heavy weight

ACP adopts a layered build: two thin aluminum outer sheets bond firmly to a lightweight inner core substance. Thanks to this sandwich layout, panels achieve outstanding anti‑deflection performance, yet weigh far less than full‑solid aluminum plates of equivalent rigidity. This light‑weight trait lowers dead loads for building frameworks and cuts down transport and on‑site handling pressure greatly.

2. Core material types decide core performance boundaries

Not all composite panels share identical inner filling. Polyethylene (PE) core variants are budget‑friendly and easy for secondary machining, fit for interior decoration and ordinary signboards. Mineral‑filled fire‑retardant cores add inorganic fillers into raw material formulas to lift fire‑safety grades, which are mandatory for high‑rise facades and public‑space exterior works. Users must match core options to local building safety codes instead of picking by price aloneAlibaba.co....

3. Surface coating quality dominates real‑world outdoor service life

How long panels keep bright outdoors hinges mostly on surface coating rather than aluminum sheet thickness. PVDF fluoropolymer finishes resist ultraviolet rays, acid rain and chalk‑out, and can sustain stable color presentation for 15‑25 years under open‑air conditions. Low‑cost polyester coatings will suffer obvious fading and powdering within several years under strong sunlight, and are better restricted to indoor‑only scenarios.

4. ACP supports abundant surface visual custom possibilities

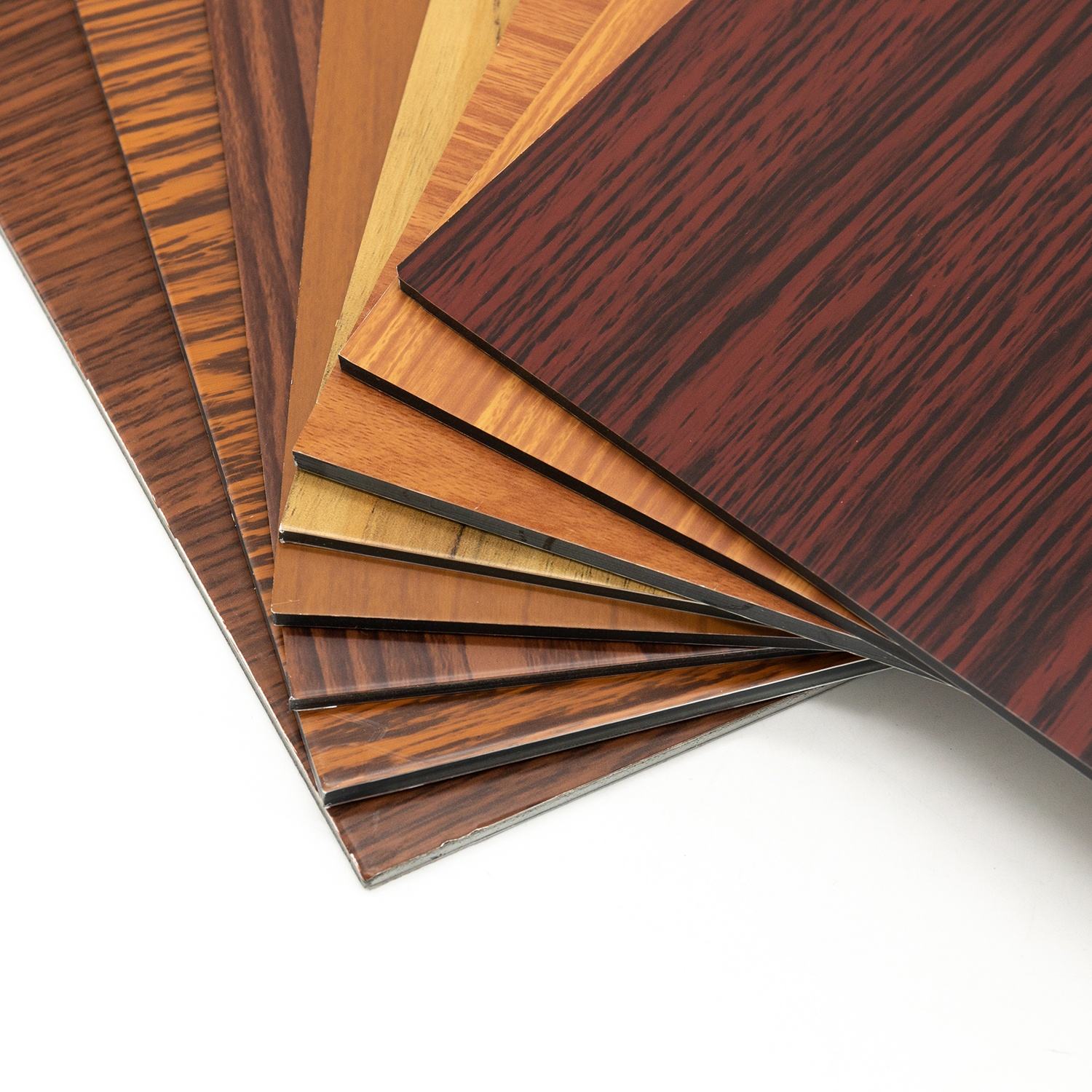

Beyond solid plain colors, manufacturers can deliver brushed metal texture, mirror finish, wood‑grain print, stone‑mimic texture and matte effects. Such diversified surface treatments remove limits for architectural visual design; designers can simulate high‑end stone or metallic appearances while controlling overall project expenditure effectivelyAlibaba.co....

5. It can undergo multiple kinds of on‑site deep processing

Standard workshop or construction‑site tools are sufficient for panel modification. Operators can complete cutting, grooving, cold‑bending, drilling and partial folding work. Such good machinability makes ACP adaptable for curved walls, special‑shaped decorative components and non‑standard signage frames without complicated custom mould investment.

6. Proper installation determines anti‑delamination performance

Even premium‑grade aluminum composite panels risk layer separation when installation goes wrong. Excessive local stress, improper slot‑groove depth or water seepage behind panel joints will destroy bonding between aluminum skins and inner core. Following official installation specifications and reserving thermal expansion gaps is essential to avoid early‑stage failure of facadesAlibaba.co....

7. It brings partial noise‑reduction benefits for building spaces

The polymer core layer possesses inherent vibration‑damping traits. When deployed as wall cladding or ceiling materials, panels weaken airborne noise transmission and help create quieter indoor surroundings. It should be noted that ACP works as auxiliary acoustic improvement material instead of professional heavy‑duty sound‑insulation boards for extreme noise‑control requirements.

8. Maintenance work stays minimal for daily operation

High‑quality coated surfaces resist common stains and dust accumulation. Routine upkeep only needs soft cloth plus neutral cleaning detergent; harsh corrosive cleaners must be avoided. Some customized anti‑graffiti surface treatments can repel spray‑paint marks, bringing extra convenience for public‑area building exteriors.

9. Recyclable components support green building targets

Aluminum skins are highly recyclable raw materials. When panels reach end‑of‑service cycles, aluminum layers can be separated for remelting and reuse. Select product series containing recycled aluminum content will help projects obtain green‑building assessment credits and lower whole‑project carbon footprintsAlibaba.co....

10. Thickness selection should follow application scenarios

Common overall panel thickness covers 3 mm, 4 mm and 6 mm. Thin 3 mm options suit indoor decoration and light‑duty sign production. 4 mm is the universal specification for most general facades. 6 mm thicker versions apply to large‑area exterior wall projects that demand superior flatness and wind‑load resistance.

11. PE‑core panels carry clear fire‑usage restrictions

Conventional polyethylene‑core ACP burns quickly and releases smoke when catching fire. For high‑rises, hospitals, shopping malls and other dense‑occupancy buildings, local codes usually forbid pure PE‑core products for outer cladding. Fire‑rated mineral‑filled core panels need to pass corresponding fire‑safety testing before large‑scale adoption on such buildings.

12. It serves far more scenarios than building facades only

Apart from well‑known exterior wall cladding, ACP sees broad adoption across many sectors: interior partition panels, metro and vehicle interior trim, exhibition booth components, storefront renovation, billboard backgrounds and marine partial decoration. Its balanced combination of cost, appearance and physical properties keeps expanding its application boundaries beyond construction industry alone.
