ACM Panel Base Parameters

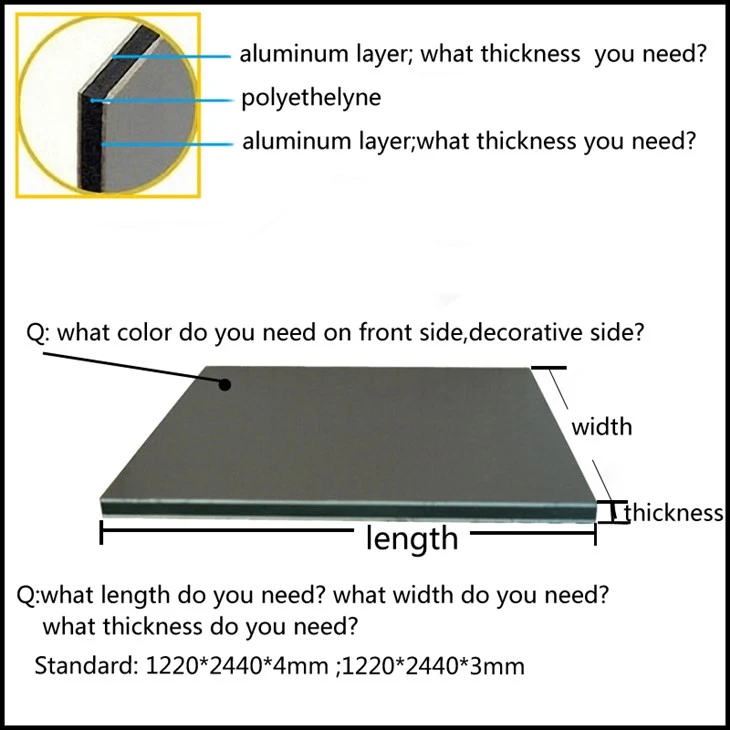

Total thickness: 3mm / 4mm / 5mm / 6mm (4mm standard exterior)
Aluminum skin alloy: AA3003 H18 / AA5005 H18 (coastal anti-rust grade)
Skin thickness: 0.21 / 0.30 / 0.40 / 0.50mm
Core material: PE polyethylene / B1 fire retardant mineral core / A2 non-combustible core
Standard panel size: 1220×2440, 1250×3050, 1500×3000mm, custom cut-to-size
Unit panel weight: 5.2–6.8 kg/㎡
Surface Coating System
PE Polyester System: indoor ceiling, partition, signage, 8–10 years warranty
PVDF 3-coat Fluorocarbon System: outdoor rainscreen façade, salt spray resistant, 20–25 years warranty
Nano Self-cleaning / Anti-bacterial Coating System: hospital, subway, coastal buildings

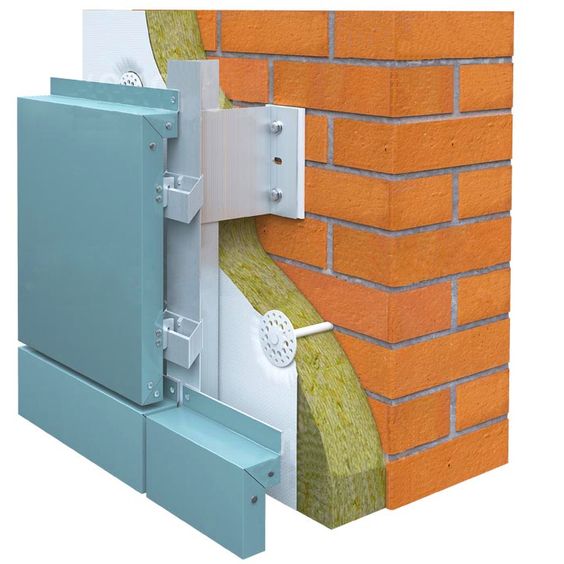

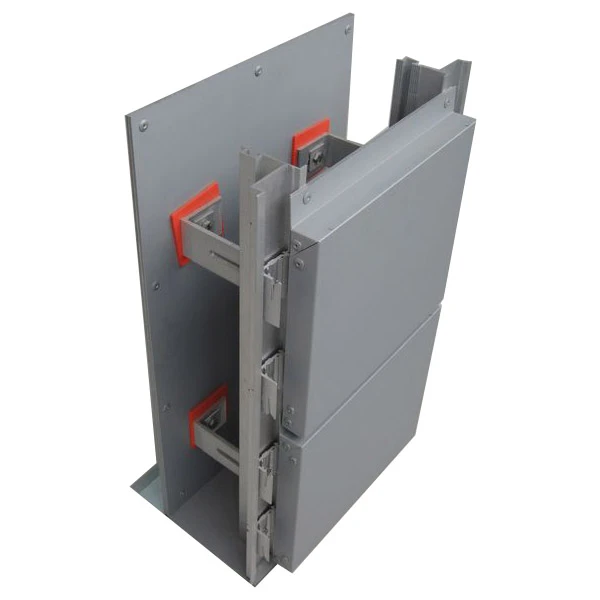

Supporting Substructure & Accessories Spec
Main keel: 6063-T6 aluminum alloy extrusion, anti-oxidation powder coated
Adjustable brackets: 3D ±5mm horizontal & vertical adjustment, 316 stainless steel anti-rust
Fasteners: 316 stainless rivets / self-tapping screws, anti-corrosion for seaside
Sealant: neutral weather-proof silicone, anti-aging, no stain on panel surface
Expansion joint gasket: EPDM rubber, absorb thermal expansion & contraction
Edge trim, corner flashing, inner/outer corner profiles matching panel color
System Whole Assembly Performance
Wind load resistance: tested ASTM E330, up to 4000Pa for high-rise coastal
Air infiltration: ≤0.06 cfm/ft² (ASTM E283), low air leakage
Water penetration: zero water ingress under dynamic rain test AAMA 501.1
Seismic performance: compliant with ASCE 7, resist building displacement
Thermal deformation compensation: reserved 4–6mm open joint to avoid panel bulging
Sound insulation & heat insulation performance of rainscreen cavity
