aluminium acp sheet Products Description
ACP Sheet (Aluminium Composite Panel) represents an advanced composite material for architectural exterior cladding, interior finishing and sign manufacturing. Commonly called sandwich panels, the product is constructed with two aluminium skins adhered to a non-metallic LDPE core. The forming process stacks aluminium foils and core material, then consolidates all layers via high temperature and pressure.

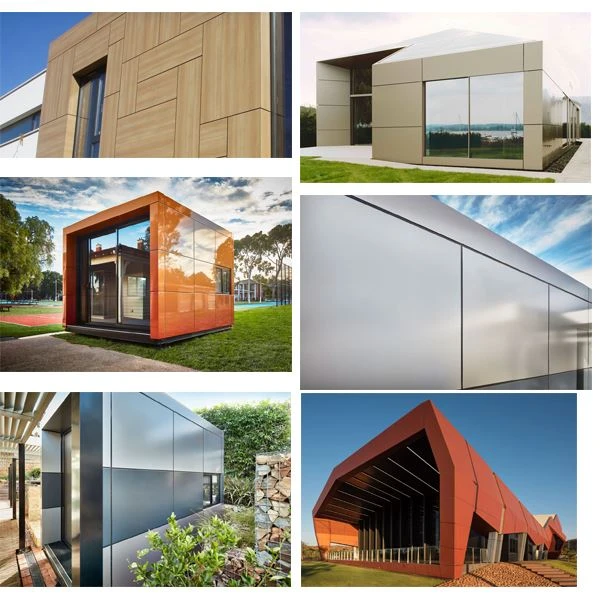

ACP panels feature continuous smooth surfaces to achieve premium visual effects on building exteriors, interiors and signage systems. Incorporated with high-performance anti-fade and anti-scratch coating technologies, the product is strongly recommended for modern architecture and facade cladding applications. Its robust construction, UV resistance and anti-stain capability help ACP achieve an extended service life.
aluminium acp sheet Structure
1)Protective film with aluloyal/OEM brand or as your requested
2)Front side: aluminum roll coated with PE/Pvdf
3)Macro molecular lamination film.
4)Core: Non-toxic polyethylene.
5)same (3)
6)Rear side: Aluminum coated with primer or as requested
aluminium acp sheet specification
|
Aluminum Sheet |
AA1100H18 |
Reasonable Price And Good Performance |
|
AA3003 |
High Strength Rustproof |
|
|
AA5005 |
Little High Price Best Performance |
|
|
Core Material |
Fireproof A2 |
Noncombustible Inorganic |
|
Fireproof B1 |
Fireproof Core ( KEOCT )(top grade exterior decoration) |
|
|
Breakable |
Non-toxicity Unbroken LDPE(Black)(interior) |
|
|
unbreakable |
(Exterior) |
|
|
Coating |
PVDF |
28~35 Um ,KYNAR500 PPG |
|
PE |
18 MICRON Polyester |
|
|
Surface Treatment |
Brush, Mirror, Wooden, Marble, art figure, etc |
|
|
Back |
Primer |
8 Micron washing Paint |
