aluminium composite board specification

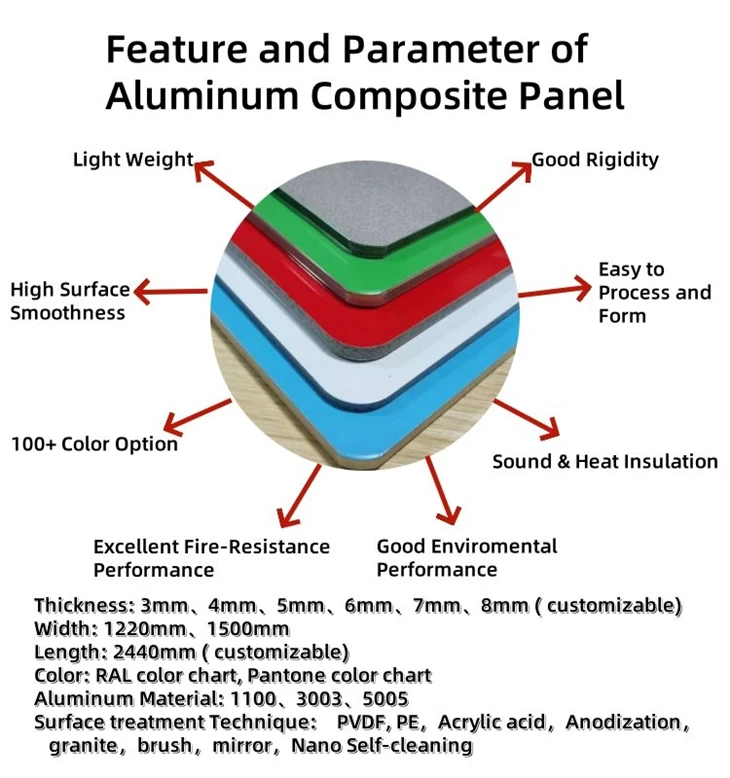

1. Aluminium Composite Board Standard Sizes
Regular stock size : 1220×2440mm (4ft×8ft)
Custom length & width for large facade or small sign blanks
2. Aluminium Composite Board Thickness & Aluminium Skin
Total thickness: 2mm / 3mm / 4mm / 5mm / 6mm
2/3mm: Signage, indoor decoration

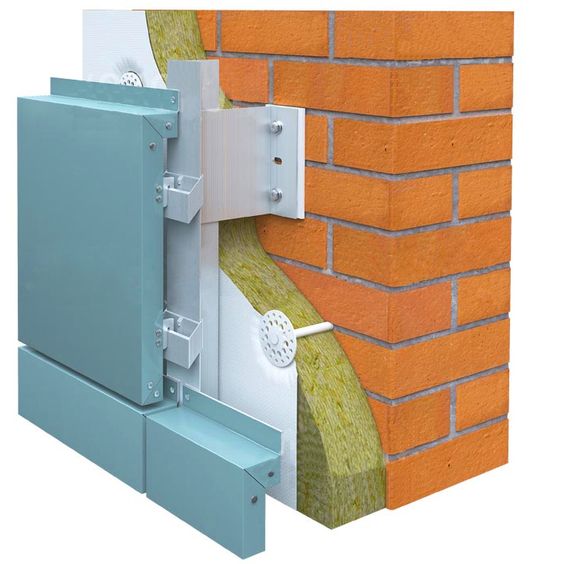

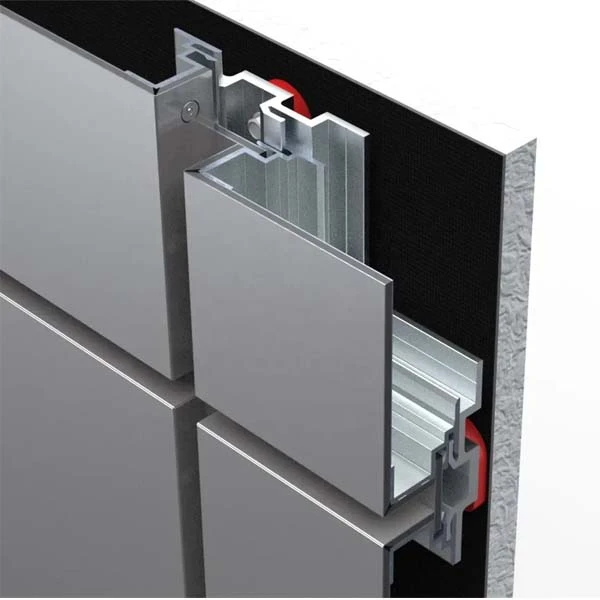

4mm: Standard exterior wall cladding
5/6mm: Roof, heavy-duty outdoor facade
Aluminium skin thickness: 0.18 / 0.21 / 0.30 / 0.40 / 0.50mm
Skin alloy: AA3003 / AA5005 anti-rust grade

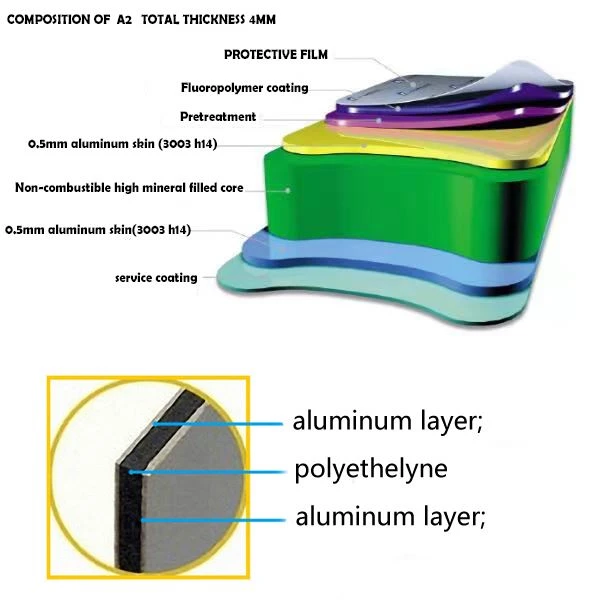

3. Aluminium Composite Board Core Material
PE Polyethylene core Low cost, signage, indoor, low-rise store front
FR Fire-retardant mineral core (B-s1,d0) Mid-rise commercial exterior wall
A2-s1,d0 Non-combustible full mineral core High-rise, hospital, metro, airport public buildings
4. Aluminium Composite Board Surface Coating Classification
PE Polyester Coating Indoor use, exhibition sign, interior wall, low budget
PVDF 3-coat Fluorocarbon Coating (AAMA 2605 standard) Outdoor long-term use, anti-UV, anti-salt spray, 20–25 years color warranty
Special finishes: white primed print surface, solid color, metallic, brushed, mirror, wood grain, stone grain, nano self-clean
How to check the quality of aluminium composite board
1. Appearance
The surfaces shall be clean. The appearance of decorative side shall comply with requirements in Ta-ble 2 below,and the non-decorative side shall have no defects affecting the use.
| Defects | Requirements |
| Press mark | Not permitted |
| Print mark | Not permitted |
| Unevenness | Not permitted |
| Plastic exposure | Not permitted |
| Uncoated | Not permitted |
| Wave | Not permitted |
| Bubble | Not permitted |
| Spot | Maximum size: ≤3 mm,and the count: ≤3 Pieces/m² |
| Scratch | Not permitted |
| Scuffing | Not permitted |
| Color difference b | Not obvious visually,and ΔE≤2 in case of arbitration |
| a The defects not included in this table can be negotiated by both parties. | |
| b Decorative pattern and color are excluded. |
2. Dimensional tolerance
The dimensional tolerance shall comply with requirements in Table 3, and for those with special requirements they may be negotiated by both parties.
| Items | Tolerance |
| Length/mm | ± 3 |
| Width/mm | ± 2 |
| Thickness/mm | ± 0.2 |
| Diagonal differential/mm | ≤ 5 |
| Straightness/(mm/m) | ≤ 1 |
| Warp/(mm/m) | ≤ 5 |
3.Coating thickness and performance
The coating thickness and performance shall comply with requirements in Table 4.
| Items | Sub-item | Requirement |
| Coating thickness/μm | Dual coating - Mean value | ≥25 |
| Dual coating - Min. value | ≥23 | |
| Triple coating - Mean value | ≥32 | |
| Triple coating - Min. value | ≥30 | |
| Pencil hardness | ≥HB | |
| Gloss difference | ≤10 | |
| Flexibility/T | ≤2 | |
| Adhesion ratingª | Circle-cut | 1 |
| Cross-cut | 0 | |
| Impact resistance/(kg·cm) | ≥50 | |
| Abrasion resistance/(L/μm) | ≥5 | |
| Hydrochloric acid resistance | Unchanged | |
| Oil resistance | Unchanged | |
| Alkali resistance | No abnormal phenomena such as bubble,heave and chalking etc.,color difference ΔE≤2 | |
| Nitric acid resistance | No abnormal phenomena such as bubble,heave and chalking etc.,color difference ΔE≤2 | |
| Accelerated weathering | Appearance | No delamination |
| Color difference ΔE | ≤4.0 | |
| Gloss loss rating | ≤2 | |
| Other aging resistances rating | 0 | |
| Salt spray | Appearance | No delamination |
| Salt spray resistance rating | ≤1 | |
| ª Either circle-cut or cross-cut Method can be chosen, but circle-cut shall be of arbitrational. | ||
4.Physical and mechanical performances
Physical and mechanical properties of curtain wall panel shall comply with requirements in Table 5.
| Items | Requirement | ||
| Bending strength/MPa | ≥100 | ||
| Elastic modulus in bending/MPa | ≥2.0×10⁴ | ||
| Penetration resistance/kN | ≥7.0 | ||
| Shear strength/MPa | ≥22.0 | ||
| Climbing drum peel/[(N·mm)/mm] | Mean value | ≥110 | |
| Min. value | ≥100 | ||
| Temperature-change resistance | Loss of climbing drum peel/% | ≤10 | |
| Adhesion ratingᵃ | Circle-cut | 1 | |
| Cross-cut | 0 | ||
| Appearance | Unchanged | ||
| Thermal expansion coefficient/℃⁻¹ | ≤4.00×10⁻⁵ | ||
| Thermal distortion temperature/℃ | ≥95 | ||
| Boiling water resistance | Unchanged | ||
| ᵃ Either circle-cut or cross-cut Method can be chosen, but circle-cut shall be of arbitration. | |||
