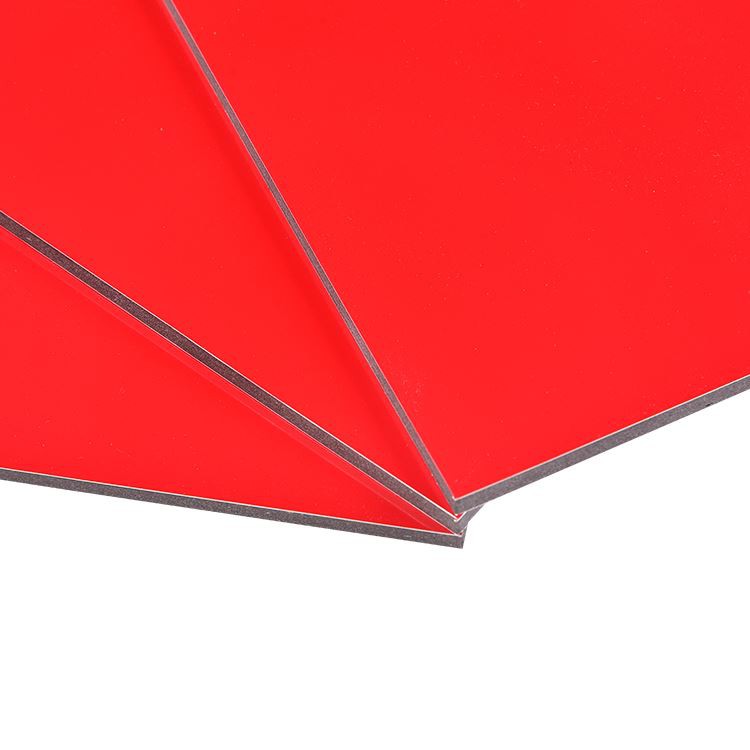

Aluminum Composite Panels (ACP) For Exterior Applications

Aluminum Composite Panels (ACP/ACM) are the gold standard for exterior building cladding, renowned for their unbeatable combination of durability, lightweight design, aesthetic versatility, and weather resistance. Specifically engineered to withstand the harshest outdoor conditions-from extreme temperatures and UV radiation to heavy rain, salt spray, and industrial pollution-exterior ACP panels deliver long-lasting performance while elevating the architectural appeal of any building, from residential complexes to high-rise commercial facades.

Exterior aluminum composite panels are designed with robust features to meet the unique demands of outdoor use, ensuring structural stability and aesthetic longevity. Below are the core specifications tailored for exterior applications:

Total Thickness: 4mm (most common, optimal balance of rigidity and weight), 5mm–6mm (for high-wind areas, high-rises, or industrial applications)

Aluminum Skin Thickness: 0.30mm–0.50mm (thicker skins for enhanced impact resistance and corrosion protection, critical for exterior exposure)

Core Material:

FR (Fire-Retardant PE): Self-extinguishing, low smoke, meets most commercial fire codes

A2-Grade Non-Combustible Mineral Core: For high-rise buildings and strict fire safety requirements

PE (Polyethylene): Economical option for low-rise, low-wind residential exteriors

Coating: PVDF (Polyvinylidene Fluoride) fluorocarbon coating (70%–80% PVDF content) is mandatory for exterior use. It provides superior UV resistance, color stability, and protection against fading, chalking, and chemical corrosion, ensuring a service life of 15–20 years. Polyester coating is only recommended for low-exposure exterior areas (e.g., shaded walls).

Standard Sizes: 1220mm × 2440mm (4ft × 8ft), 1220mm × 3660mm, 1500mm × 3000mm–6000mm; custom sizes available to minimize joints and create seamless facades

Finishes & Colors: Available in solid colors (RAL/Pantone standard), metallic, matte, glossy, and textured finishes (wood grain, stone, brushed metal). Popular exterior colors include neutral tones (gray, beige, black), metallic shades (silver, copper), and bold hues (green, blue) for architectural statement.

1. Superior Weather & UV Resistance

Exterior ACP panels with PVDF coating are engineered to withstand prolonged sun exposure without fading or degrading. They resist extreme temperatures (from -40°C to 80°C), heavy rain, snow, and hail, making them suitable for all climate zones-from coastal areas (resistant to salt spray) to industrial regions (resistant to pollution and chemicals).

2. High Wind Load & Impact Resistance

Thicker 4mm–6mm panels with 0.30mm–0.50mm aluminum skins offer exceptional rigidity and wind load capacity, meeting international standards for high-rise buildings and coastal areas with strong winds. The composite structure also provides excellent impact resistance, preventing dents and damage from debris or accidental impact.

3. Corrosion Resistance

The aluminum skins and PVDF coating create a barrier against corrosion, making exterior ACP panels ideal for coastal environments (where salt spray can damage traditional materials) and industrial areas (exposed to chemicals). The panels require no additional anti-corrosion treatment, reducing maintenance costs.

4. Lightweight & Easy Installation

Exterior ACP panels weigh 3.5–6.5 kg per square meter, significantly lighter than stone, brick, or solid aluminum cladding. This lightweight design reduces the load on the building structure, simplifies transportation and handling, and speeds up installation-lowering labor costs for large-scale exterior projects. The panels can be easily cut, bent, and routed to fit flat, curved, or irregular facade shapes.

5. Low Maintenance & Self-Cleaning

The smooth, non-porous PVDF surface repels dirt, dust, and pollutants. Occasional cleaning with mild detergent and water is sufficient to restore the panel's appearance, eliminating the need for frequent and costly maintenance compared to traditional exterior cladding materials.

6. Fire Safety Compliance

Exterior ACP panels for commercial and high-rise buildings are available with FR or A2-grade non-combustible cores, meeting strict fire safety codes (e.g., ASTM E84, EN 13501). These cores are self-extinguishing, produce low smoke, and prevent the spread of fire, ensuring the safety of the building and its occupants.

Exterior aluminum composite panels are widely used in a variety of architectural projects, including:

Building facades and curtain walls (commercial, residential, and public buildings)

High-rise skyscrapers and office buildings

Residential complex exteriors and villa facades

Hotels, airports, shopping malls, and public landmarks

Canopies, awnings, and exterior decorative elements (columns, cornices)

Renovation and retrofit of old building exteriors (to improve aesthetics and performance)

Backing Framework: Install a stable aluminum box bar or steel framework (spaced 600–1200mm apart, closer for high-wind areas) to support the ACP panels. Ensure the framework is level and securely fastened to the building substrate.

Panel Fastening: Use self-tapping screws or structural adhesive to attach panels to the framework. Leave 5–10mm gaps between panels to accommodate thermal expansion and contraction (critical for exterior use, as temperature fluctuations cause panels to expand/contract).

Sealing: Use neutral-cure silicone sealant (compatible with ACP) to seal panel joints, corners, and edges. This prevents water infiltration, which can damage the framework and building structure.

Protective Film: Keep the panel's protective film intact until installation is complete to avoid scratches and damage to the PVDF coating.

Maintenance: Clean panels every 6–12 months with mild detergent and a soft cloth. Inspect the framework and fasteners annually for loose connections or corrosion. Touch up any damaged coating promptly to maintain weather resistance.

Storage: Store panels flat in a dry, ventilated area, away from direct sunlight and moisture. Avoid stacking heavy objects on the panels to prevent warping.

Exterior aluminum composite panels are the ideal choice for modern architectural projects that demand durability, aesthetic versatility, and long-lasting performance. With their robust construction, weather resistance, and easy installation, they deliver a sleek, professional finish that enhances the curb appeal of any building while ensuring decades of reliable service.
