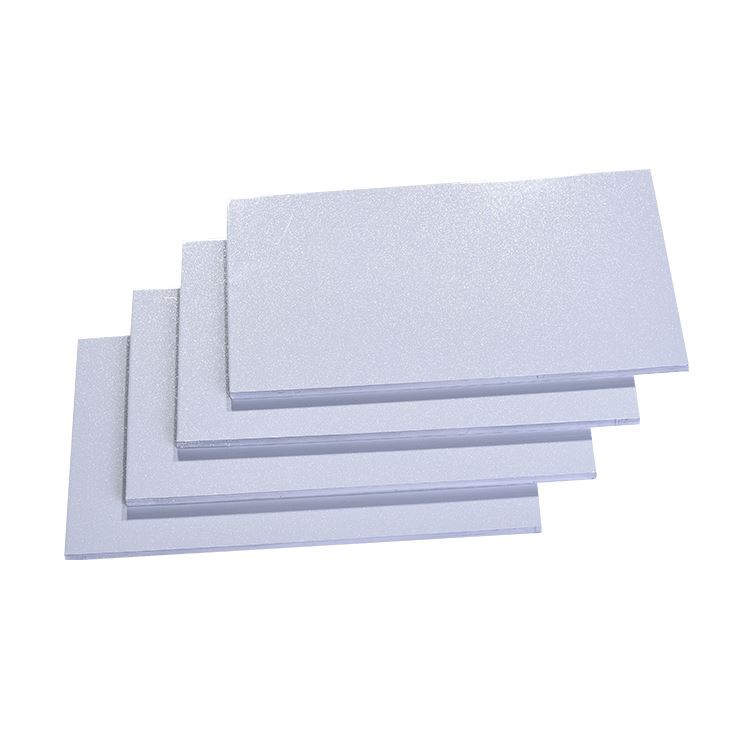

Standard Size Of ACP Sheet & ACM Board

Aluminium Composite Panel (ACP) and Aluminium Composite Material (ACM) Board are widely used interchangeable building materials, known for their lightweight, durability, and versatility in architectural and decorative applications. Understanding their standard sizes is crucial for project planning, material procurement, and installation, as it ensures compatibility, reduces waste, and aligns with industry construction norms. Below is a detailed overview of the global standard sizes, common variations, and key specifications for ACP sheets and ACM boards.

The standard length and width of ACP sheets and ACM boards are consistent across most manufacturers worldwide, with the 4ft × 8ft size being the most universally adopted option. This standardization is designed to simplify transportation, storage, and on-site cutting, making it suitable for both small and large-scale projects.

1.1 Most Common Standard Size

The most widely used standard size for ACP sheets and ACM boards is 1220mm × 2440mm (4ft × 8ft). This size is favored for its versatility, as it can be easily cut, trimmed, and fabricated to fit various applications-including wall cladding, ceiling panels, signage, and decorative elements. It is the default size for most retail, commercial, and residential projects, offering a balance between usability and efficiency in material usage.

1.2 Other Common Standard Sizes

In addition to the 1220mm × 2440mm size, several other standard dimensions are widely available to meet diverse project needs, especially for larger installations that require fewer joints and seamless finishes:

1220mm × 3050mm (4ft × 10ft): Suitable for taller wall cladding, longer signage, and projects where extended length reduces the number of seams, enhancing the aesthetic appeal.

1220mm × 3660mm (4ft × 12ft): Ideal for large-scale exterior facades, high-rise building cladding, and industrial applications, where longer panels minimize installation time and improve structural integrity.

1500mm × 3000mm / 1500mm × 4000mm: These wider panels are often used for commercial projects, such as shopping mall facades and large signage, where broader coverage is needed to create a seamless look.

1500mm × 6000mm: A larger standard size for high-demand commercial and industrial projects, offering maximum coverage and reducing the number of joints significantly.

The thickness of ACP sheets and ACM boards refers to the total thickness of the panel, including the two outer aluminium skins and the inner core (usually polyethylene or fire-retardant material). Thickness is selected based on the application's load requirements, environmental conditions, and installation height, with 3mm, 4mm, and 6mm being the most common standard thicknesses.

3mm Thickness: The lightest standard thickness, primarily used for indoor applications such as interior wall cladding, ceiling panels, retail displays, and signage. It is cost-effective, easy to cut and bend, and suitable for areas with no wind load or low stress. The aluminium skin thickness for 3mm panels typically ranges from 0.21mm to 0.25mm, with a core thickness of approximately 2.5mm.

4mm Thickness: The global standard for exterior applications, including building facades, balcony cladding, and mid-rise building exteriors. It offers an optimal balance of durability, weight, and rigidity, making it suitable for most outdoor projects-even in windy coastal areas. The aluminium skin thickness for 4mm panels is usually 0.25mm to 0.5mm, with a core thickness of 3.0mm to 3.5mm.

6mm Thickness: Designed for high-stress applications, such as high-rise buildings, airports, and industrial cladding, where superior rigidity and wind resistance are required. It is heavier and more durable than 3mm and 4mm panels, with aluminium skin thickness ranging from 0.25mm to 0.5mm and a core thickness of 5.0mm to 5.5mm.

Other Thickness Options: Some manufacturers offer 2mm (for lightweight indoor signage) and 5mm/8mm (for specialized industrial applications) as extended standard options, depending on project requirements.

3.1 Aluminium Skin Thickness

The standard aluminium skin thickness for ACP sheets and ACM boards ranges from 0.05mm to 0.50mm, with 0.25mm, 0.3mm, and 0.5mm being the most common choices. Thicker aluminium skins enhance durability, impact resistance, and corrosion resistance, making them suitable for outdoor and high-traffic applications.

3.2 Custom Size Options

While standard sizes are widely available, most manufacturers offer custom cutting and sizing services to meet unique project needs. Custom lengths can be extended up to 6500mm, and custom widths up to 2000mm (maximum), depending on the production capacity. Custom sizes are ideal for projects with non-standard dimensions, reducing material waste and ensuring a perfect fit.

4. Size Selection Guidelines

Indoor Applications (Interior Cladding, Signage, Ceilings): Choose 3mm thickness and 1220mm × 2440mm size for cost-effectiveness and easy installation. For longer indoor panels, 1220mm × 3050mm is a practical option.

Outdoor Applications (Facades, Exterior Cladding): Opt for 4mm thickness (standard) or 6mm thickness (high-rise/windy areas) with larger sizes (1220mm × 3660mm or 1500mm × 6000mm) to minimize joints and improve weather resistance.

Large-Scale Commercial Projects: Use wider and longer standard sizes (1500mm × 4000mm or 1500mm × 6000mm) to reduce installation time and create a seamless, professional finish.

The standard sizes of ACP sheets and ACM boards are designed to meet the needs of most architectural and decorative projects, ensuring compatibility, efficiency, and durability. Whether using the universal 1220mm × 2440mm size or custom dimensions, selecting the right size and thickness is key to achieving optimal performance and aesthetic results.
