Products Description

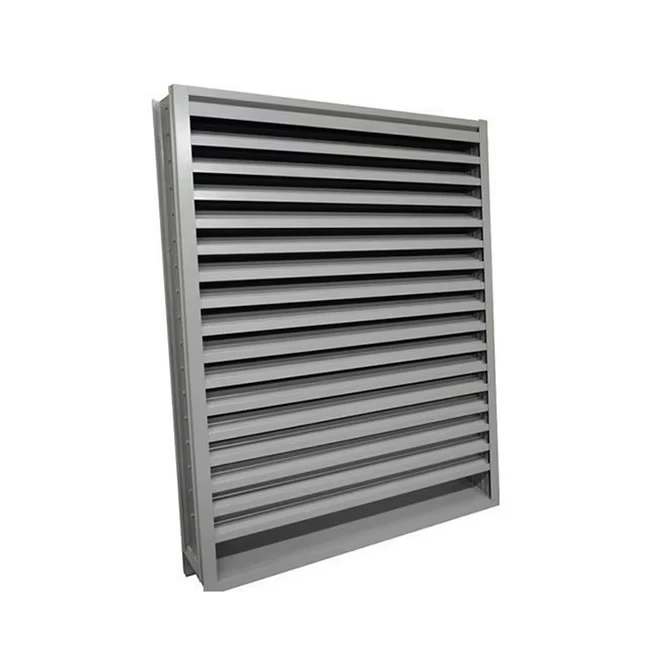

An aluminum ventilation louver is a building component made of aluminum alloy slats, designed to enable airflow while blocking rain, debris, pests, and excessive sunlight, balancing ventilation, weather protection, and architectural aesthetics. It is widely used in commercial, industrial, and residential buildings.
Products Specification
|
Product name |
Aluminum ventilation louver (Flat Seam) |
|
Thickness |
1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, etc. |
|
Max size |
1800*5000mm (Flat) |
|
Aluminum alloy |
1100/3003/3105 |
|
Surface treatment |
PE/PVDF spray coating, Powder coating |
|
Painting |
KCC, PPG, Akzo Nobel, Becker, etc |
|
Color |
Solid color, Metallic Color, Wooden/Stone Color, etc |
|
Size/Design |
Sizes and design are available according your detail drawings |
|
Certificates: |
SGS,ISO 9001:2000,CE,KYNAR 500, etc |
|
MOQ: |
1 sqm for thickness ≤ 3.0mm, 1000 sqm for thickness >3.0mm |
|
Delivery time: |
around 20 days, depends on the panel drawings and quantity |
|
Payment Term: |
TT, LC at sight |
|
Production Capability: |
50000SQM Per Month |
|
More Service: |
OEM, Small samples free |
Core Structure & Materials
Basic composition: outer frame+parallel horizontal/vertical blades; optional insect screens, drain channels, and motorized actuators.
Aluminum alloy (common 6063-T5) is lightweight, corrosion-resistant, and easy to process; surface treatments include anodizing, powder coating, and PVDF painting for durability and color matching.
