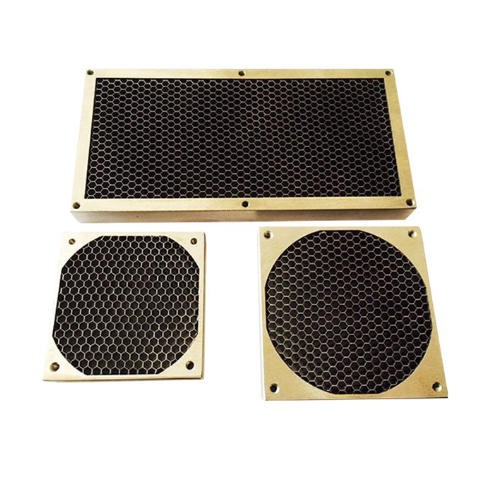

Stainless Steel Honeycomb Emi Shielding Ventilation Panel
Shielded air ventilation panels, also called shielded honeycomb vent panels, honeycomb can design and customize aluminum honeycomb shielding ventilation panels according to the requirement of customer.
Shielded vent panel effectiveness is accomplished using waveguide honeycomb design principles.The slant honeycombs,we can have angle of 30°, 45°, 60.
Technical properties
|
Material |
SUS304 & SUS316 |
|
Standard cell size(mm) |
1.6,3.2,6.4 |
|
Standard dimension(mm) |
60*60,120*120,300*300,600*600,1000*1000 |
|
Standard thickness(mm) |
6.35mm, 12.7mm, 25.4mm, 30mm, 40mm, 45mm |
|
Surface coating |
conductive, oxidized, tin-plated, nickel-plated, galvanized, chrome-plated carbon steel |
|
Frame thickness |
stainless steel: 0.08mm, 0.13mm |
|
Frame structure |
round mounting port, special-shaped, rain proof, etc. |
|
Advantage |
meet the requirements of environmental resistance |
Steel honeycomb shielding performance
|
Steel honeycomb (cellsize:3.2mm,thickness:12.7mm) |
||
|
Frequency |
Magnetic Attenuation |
Electric Attenuation |
|
10 KHz |
35 dB |
/ |
|
200 KHz |
60 dB |
/ |
|
100 MHz |
/ |
100 dB |
|
500 MHz |
/ |
90 dB |
|
1 GHz |
/ |
85 dB |
|
5 GHz |
/ |
80 dB |
|
10 GHz |
/ |
80 dB |
