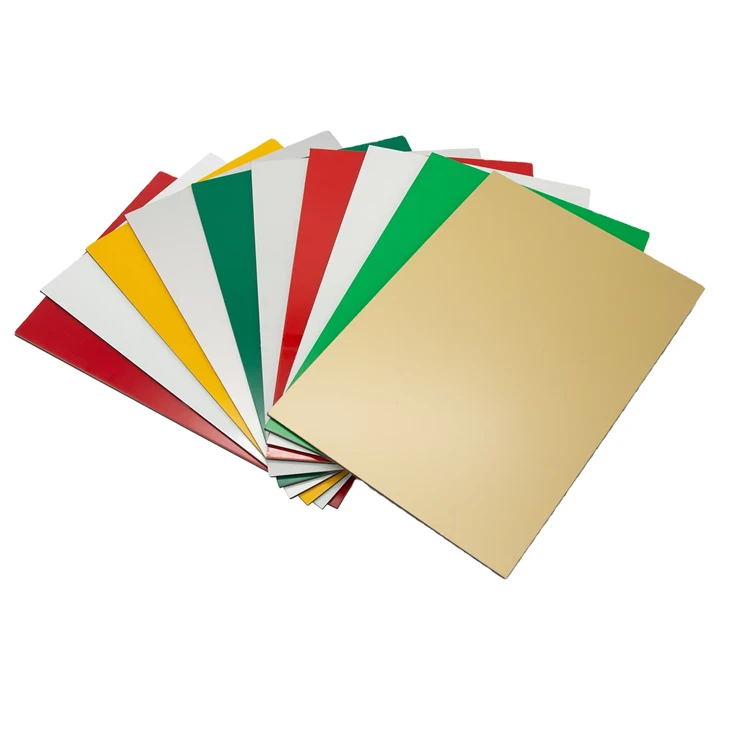

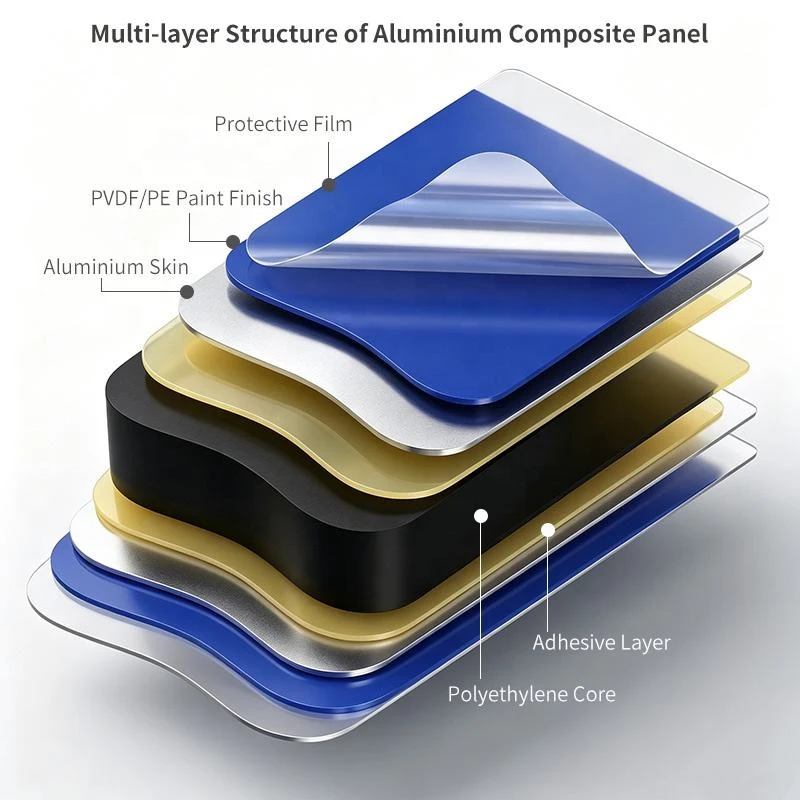

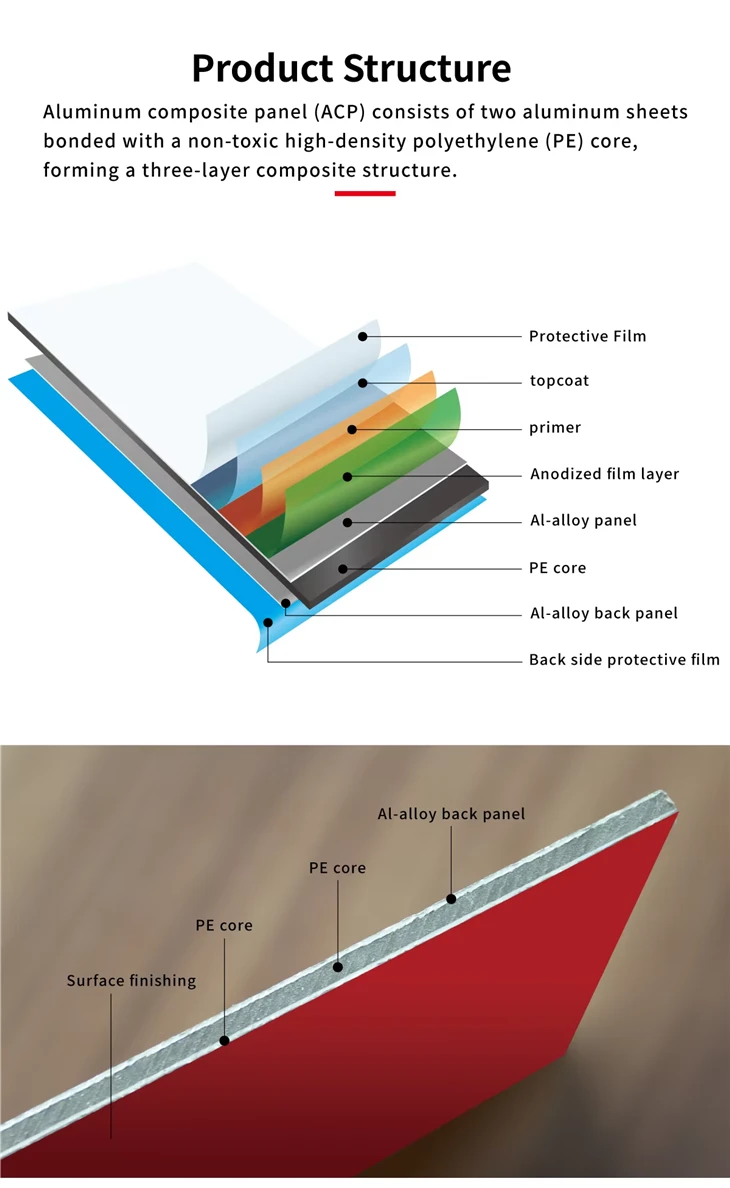

ACP (Aluminum Composite Panel), also known as ACM (Aluminum Composite Material), is a modern lightweight composite building material. It consists of two thin coated aluminum alloy skins permanently bonded to a non-toxic polyethylene (PE) or fire-resistant mineral core. With perfect flatness, high durability and excellent decorative performance, ACP panels are widely used for architectural and advertising projects worldwide.
Acp Panel Sheets General Specifications
| Item | Details | Tolerance |
|---|---|---|
| Total thickness | 3mm, 4mm, 5mm, 6mm | ±0.2 mm |
| Aluminum skin thickness | 0.12mm, 0.21mm, 0.30mm, 0.40mm, 0.50mm | ±0.02 mm |
| Standard sheet size | 1220×2440 mm, 1250×3050 mm; custom length available | Width: 0~+4mm |
| Aluminum alloy | AA3003 / AA5005 | - |
| Surface coating | PE Polyester, PVDF, FEVE, Nano, Brushed, Mirror, Wood grain, Marble grain | - |
| Core material | PE polyethylene / FR fire-retardant mineral core | - |
Acp Panel Sheets Physical & Mechanical Properties
| Property | Unit | Typical Value | Test Standard |
|---|---|---|---|
| Peel Strength | N/mm | ≥7.0 | ASTM D1876 |
| Tensile Strength | MPa | ≥50 | ASTM D638 |
| Flexural Strength | MPa | ≥60 | ASTM D790 |
| Flexural Modulus | MPa | ≥20000 | ASTM D790 |
| Thermal Expansion Coefficient | /°C | ~2.4 ×10⁻⁵ | ASTM D696 |
| Thermal Conductivity | W/m·K | ~0.11 | ASTM C518 |
| Water Absorption | % | ≤0.1 | ASTM D570 |
