Products Description

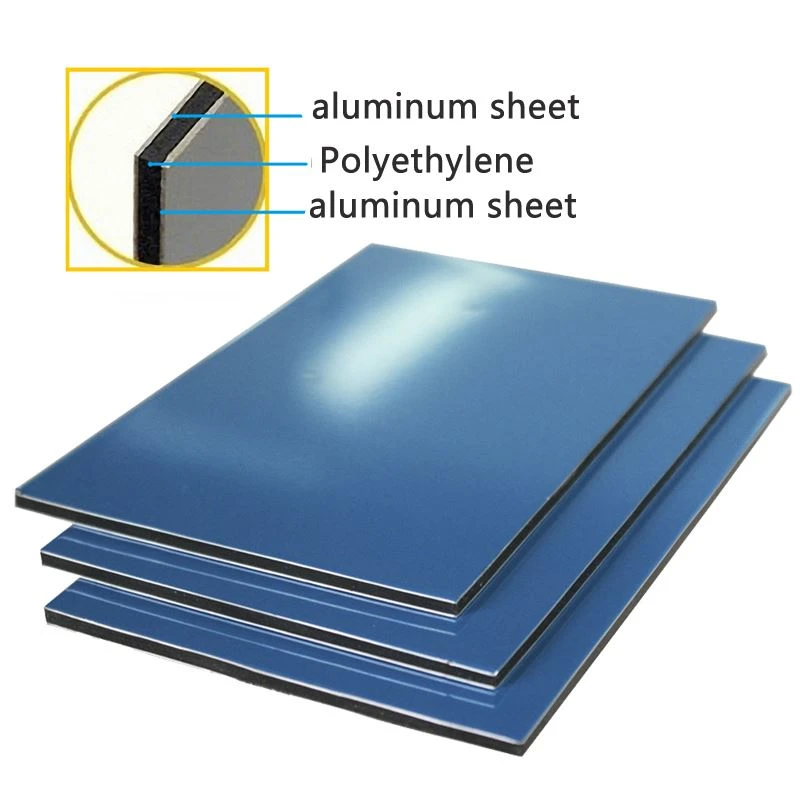

Aluminium Composite Panels consist of two thin aluminium sheets bonded to a non-aluminium core, typically made of polyethylene (PE) or mineral-filled core materials. The aluminium sheets provide strength and durability, while the core adds rigidity and insulation properties.

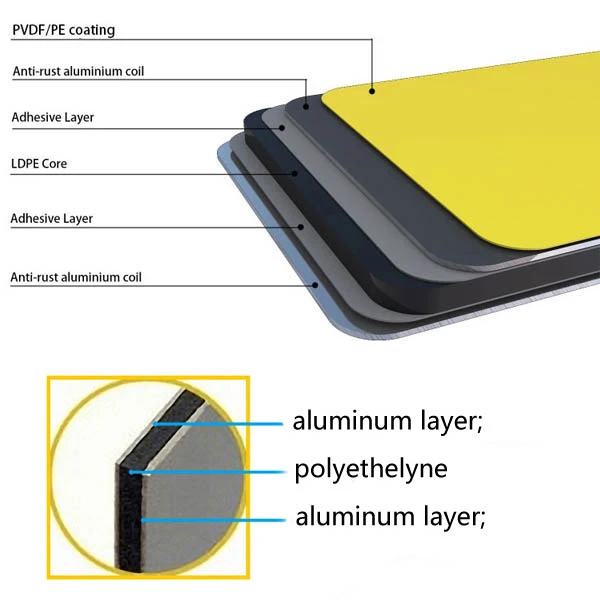

The aluminum-plastic composite panel is composed of multiple layers of materials. The upper and lower layers are high-purity aluminum alloy plates, and the middle layer is non-toxic low-density PE core board. The front side of the board is also coated with a protective film. For outdoor, the front of the aluminum-plastic plate is coated with PVDF, while for indoor, the front can be coated with non-fluorocarbon resin.
Specification
|
Panel Thickness |
2mm,3mm,4mm,5mm,6mm are available |
|
Alu thickness |
0.5mm,0.4mm,0.3mm,0.21mm,0.18mm,0.15mm, 0.12mm,0.1mm,0.06mm |
|
Width |
1220mm(regular),1250mm,1300mm,1500mm, 1550mm,1570mm,1575mm(Maximum) |
|
Length |
2440mm(regular),and or by customer's offers,5800mm(Maximum) |
|
Standard size |
1220(Width)x2440(Length)x3mm(Thickness); 1250(Width)x2440(Length)x4mm(Thickness); |
|
Surface Finish |
MIRROR ,MARBLE IMITATION,WOOD IMITATION,BRUSH,PVC FILM,PP FILM,PEARL SERIES,GLOSSY SURFACE,MATT SURFACE |
|
Core material |
( Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE, ) B1 non-combustible mineral filled core,A2 non-combustible mineral filled core |
|
Coating |
PE COATING,PVDF COATING,FEVE COATING,ANODIZED COATING |
|
Standard |
According to China National Standard GB/t 17748-2016 |
Types of aluminum composite panel
Technical Data Sheet---Out Wall
|
Test items |
Standard indicators |
Test value |
Individual determinant |
|
Coating thickness |
Least value≥25um |
29um (Average 30um) |
Coincidence |
|
Glossiness deviation |
≤10 (gloss 30.4) |
0.8 (gloss 30.4) |
Coincidence |
|
≤5 (gloss≥70pm) |
|||
|
Coating flexibility |
≥HB |
3H |
Coincidence |
|
Fencil hardness |
≤2T |
0T |
Coincidence |
|
Adhesion |
No Inferior to grade 1 |
Graticule Grade 0 /Cycle grade 1 |
Coincidence |
|
Impact resistance |
50 KG.cm/ No paint stripping, No cracks |
50 KG.cm/ No paint stripping, No cracks |
Coincidence |
|
Boiling water resistance |
Unconverted |
Unconverted |
Coincidence |
|
Acid resistance |
Unconverted |
Unconverted |
Coincidence |
|
Alkaline resistance |
Unconverted |
Unconverted |
Coincidence |
|
Oil resistance |
Unconverted |
Unconverted |
Coincidence |
|
Impregnant resistance |
Unconverted |
Unconverted |
Coincidence |
|
Rinse resistance |
Unconverted by≥10000 times |
Unconverted by≥10000 times |
Coincidence |
|
Abrasion resistance |
≥5L/um |
8.9L/um |
Coincidence |
|
Tarnish resistance |
≤15% |
7.8% |
Coincidence |
|
Surface density |
±0.5kg/m2 |
5.32kg/m2 |
------- |
|
Flexural strength |
≥100Mpa |
121Mpa |
Coincidence |
|
Bending elastic modulus |
≥2.0*104Mpa |
3.12*104Mpa |
Coincidence |
|
Cross-resistance |
≥9.0KN |
9.94KN |
Coincidence |
|
Shear strength |
≥28.0Mpa |
32.0Mpa |
Coincidence |
|
180°Peel Strength |
≥7.0N/mm |
11.2N/mm |
Coincidence |
|
Temperature resistance |
Unconverted |
Unconverted |
Coincidence |
|
Heat distortion tem perature |
≥105℃ |
120℃ |
Coincidence |
|
Therm al expansion coefficient |
≤4.00*10-5℃-1 |
1.98*10-5℃-1 |
Coincidence |
Technical Data Sheet---Inner Wall
|
Test items |
Standard indicators |
Test value |
Individual determinant |
|
Coating thickness |
Least value≥16um |
29um (Average 30um) |
Coincidence |
|
Glossiness deviation |
≤10 (gloss 70) |
2.6 (gloss 24) |
Coincidence |
|
≤5 (gloss≥70pm) |
|||
|
Coating flexibility |
≥HB |
3H |
Coincidence |
|
Fencil hardness |
≤3T |
1T |
Coincidence |
|
Adhesion |
No Inferior to grade 1 |
Graticule Grade 0 /Cycle grade 1 |
Coincidence |
|
Impact resistance |
50 KG.cm/ No paint stripping, No cracks |
50 KG.cm/ No paint stripping, No cracks |
Coincidence |
|
Boiling water resistance |
Unconverted |
Unconverted |
Coincidence |
|
Acid resistance |
Unconverted |
Unconverted |
Coincidence |
|
Alkaline resistance |
Unconverted |
Unconverted |
Coincidence |
|
Oil resistance |
Unconverted |
Unconverted |
Coincidence |
|
Impregnant resistance |
Unconverted |
Unconverted |
Coincidence |
|
Rinse resistance |
Unconverted by≥10000 times |
Unconverted by≥10000 times |
Coincidence |
|
Surface density |
±0.5kg/m2 |
5.32kg/m2 |
Coincidence |
|
Flexural strength |
≥60Mpa |
79.6Mpa |
Coincidence |
|
Bending elastic modulus |
≥1.5*104Mpa |
1.99*104Mpa |
Coincidence |
|
Cross-resistance |
≥5.0KN |
6.25KN |
Coincidence |
|
Shear strength |
≥20.0Mpa |
22.6Mpa |
Coincidence |
|
180°Peel Strength |
≥5.0N/mm |
6.2N/mm |
Coincidence |
|
Temperature resistance |
Unconverted |
Unconverted |
Coincidence |
|
Heat distortion Tem perature |
≥95℃ |
116℃ |
Coincidence |
|
Therm al expansion coefficient |
≤4.00*10-5℃-1 |
2.74*10-5℃-1 |
Coincidence |
Aluminum composite panel advantages
Easy Processing & Installation
Easy to process due to its light weight;Superior construct-ability makes it easy to cut, plan edge, bend and form with simple tools.
Easy to Maintain
Aluminum composite panel enjoy the advantage of self-cleaning; Neutral detergent and water are enough to keep it clean.
Even Coat & Various Colors
Aluminum composite panel use advanced film technology, making the joining of paint and panel strong and uniform;Diversity of colors can satisfy your different requirements.
Fire Resistance
PE plastic core plate is adopted as the flame retarding substance in between difficult-combustible aluminum layers,fireproof ability is B1 grade standard and A2 grade standard .
High lmpact Resistance
Innovative composite production of viscose elastic core fused with durable aluminum membranes provides high impact and breakage resistance;Aluminum composite panel is strong and rigid.
Peel Strength
Advanced technology is applied in Aluminum composite panel which enhances the key factor, peel strength, to an excellent condition; flatness of panel has been largely improved.
Sound Resistance
The unique non-combustible poly-ethylene core of Aluminum composite panel provides sound reducing properties better than other materials such as wood and steel.
Thermal Resistance
Aluminum composite panel have insulating properties that prevent heat to penetrate structures, which translates into energy savings.
Torsion Strength
High resistance to pressure and force exertion; High flexibility; No damages to paint layer when curved; Resistant to corrosion even by sand storm.
Weather Resistance
PVDF coating (KYNAR-500) material provides good weather ability. The surface will not be damaged under any climate; Color will last longer.
Aluminum composite panel application
Package and Shipment
Manufacturing Process
Quality Test
Our factory & quipment
Honor and qualification
CE Certificate OMA Testing
KYNAR500(Certificate of PVDF paint)
ISO 14001 Certificate
Environment certificate
ISO9001：2015
GB/T9001-2016
Product Test repoty
b1 fire-rated
A2 fire-rated
SGS quality Test
rosH
ASTM-E84
FAQ
Q: Are you trading company or manufacturer?
A: We are a Factory with many years of honest record, our spotless record gives us great reputation in this business.
Q: How to ensure the quality of your products?
A: We have got the certificates of ISO9001,ISO1400,CE, CQM. and we have strict inspection to control raw material, every production processes and final products.
Q: How can we get your price?
A: We need below information to quote for you: 1.Product Name; 2.Standard & more information about specification; 3.Material Grade (Chemical Composition); 4.Dimension; 5.Quantity; 6.The Drawing for Special Parts.
Q: What is your sample policy?
A: Yes, we could offer the sample for free charge but the freight is paid by the receiver and the courier cost.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: How long is the delivery time?
A: For the products in stock, it needs 5-10days. For the customized items, normally 15-30days, it depends on the quantity.
Q: Can you customize the mold?
A: Yes. you can customize the mold according to your template or drawing. If you need to change the mold in case of production or installation problems we will also give you professional answers.
Q: Can you provide project design?
A: Of course,and our experienced designer can well understand your requirements and offer you suitable advice.
Q: why should you buy from us not from other suppliers?
A: The company now has a production workshop of 30000 Square Meters, 25 color plate pressing machines, 5 fully automatic purification plate production lines and 3 fully automatic section steel production lines.
Q: How do you resolve the problem about your products?
A: Person of aging services: For customer complaints commissioner set up a special complaint handling, complaint issues recorded the first time and find the relevant person in charge of the feedback and resolve. Details check our "Quality corrective action report".
Q: What Certifications do you have?
A: ISO9001, CE, CO, SONCAP, FTA, COC, FORM E/A/O, PVOC certifications etc. 100% quality check before each of shipment.
