Products Description

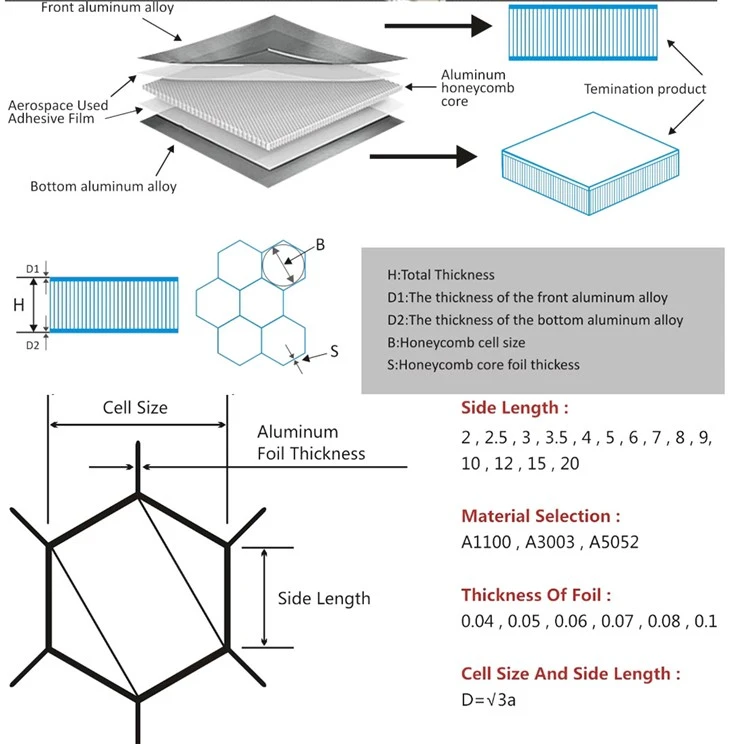

Aluminum honeycomb core sandwich composite panel is a three-layer structural cladding material specially developed for exterior facade and curtain wall system. It is composed of two aluminum face sheets bonded with structural adhesive to hexagonal aluminum honeycomb core, featuring light weight and high rigidity, which is the preferred material for modern high-end building exterior decoration.
Top & Bottom Aluminum Skin: 3003 / 5052 aluminum alloy, thickness 0.6mm–1.5mm customizable
Aluminum Honeycomb Core: Hexagonal cell structure, adjustable cell size & foil thickness
High Strength Structural Adhesive Film: Anti-debonding, temperature resistant
Overall Panel Thickness: 10mm, 15mm, 20mm, 25mm, 30mm, customized thickness available
|
Production Name |
Specifications |
Applications |
| Aluminum Honeycomb Core Sandwich Composite Panel Facade |
10mm, 15mm, 20mm, 25mm In common use thickness |
Applicable as direct installation on interior and exterior wall body |
|
Aluminum Honeycomb Panel |
Standard 1200*2440, 1000*2000 |
Applicable as single and double side composite slab, ceramic and furniture plate |
|
Aluminum Fiber Glass Honeycomb Panel |
Big expenditure |
Applicable as single and double side composite slab, ceramic and furniture plate |
|
Stone Emulation Honeycomb Panel |
Standard 1200*2440, 1000*2000 Thickness 6mm/10mm, 15mm/20mm |
Applicable as partition panels in the interior and exterior decoration of a building |
