Products Description
Face: High-density SPC (stone plastic composite) layer (1.2–3mm)

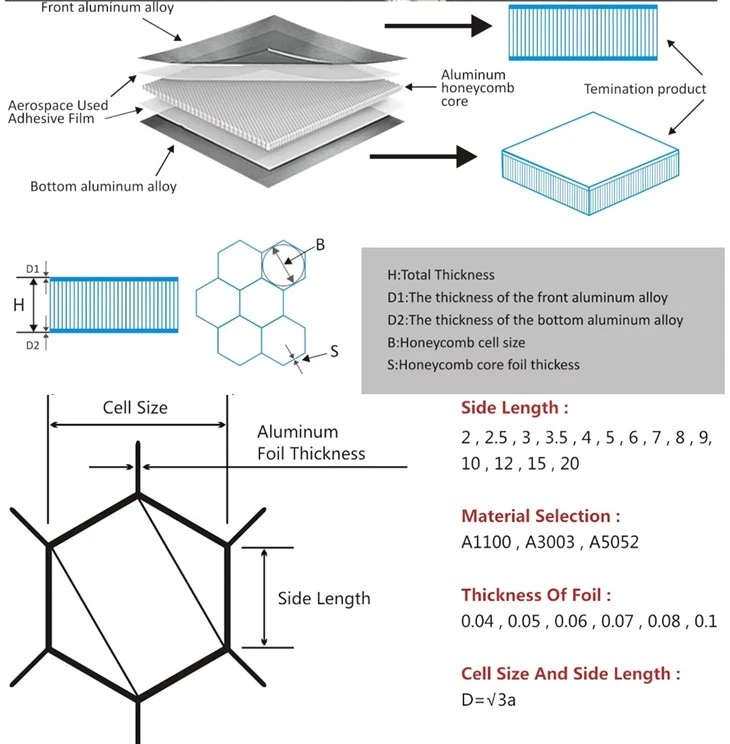

Core: Aluminum honeycomb core (hexagonal, aerospace-grade, 6–10mm cell)
Back: Aluminum/balance sheet

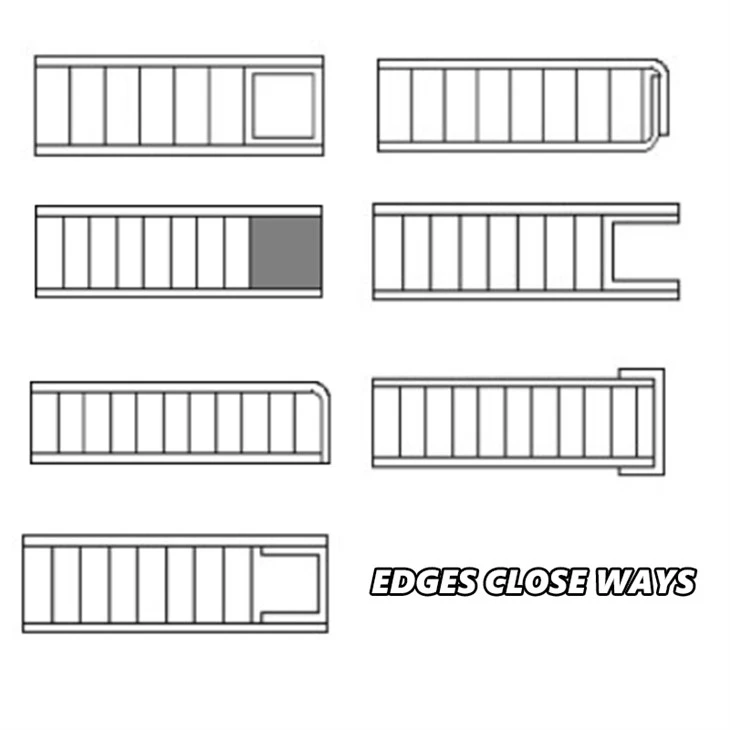

Edge: Double female grooves (both sides) for seamless joint
Key Specifications
Standard size: 1220 × 2440mm / 1220 × 2750mm
Thickness: 8mm, 9mm, 18mm (customizable)
Fire rating: Class A / A2 (GB8624, EN 13501-1)
Density: 5.5–7.5 kg/㎡
Surface: Wood grain, stone, solid color, matte, high-gloss
Groove: Double female (recessed) on two long sides
Joint: With I-shaped aluminum/PVC strip (hidden seam)
Core Advantages
Double female groove system: Seamless,clean lines, fast install
Lightweight & high strength: 70% lighter than solid board, high rigidity
100% waterproof & moisture-proof: Ideal for bathrooms, kitchens, basements
Class A fireproof: Non-combustible, low smoke, no dripping
Sound insulation: 28–35dB noise reduction
Eco-friendly: Zero formaldehyde, recyclable
Wear-resistant: Surface hardness 4H+, scratch-proof
Quick install: Dry construction, no glue, 500㎡/day per team
Installation (Double Female Groove)
Cut panel to size
Insert I-shaped connector strip into one panel's female groove
Slide adjacent panel's female groove onto the other side of the I-strip
Fix to wall/frame with clips (hidden)
Finish: seamless, no visible gaps
Typical Applications

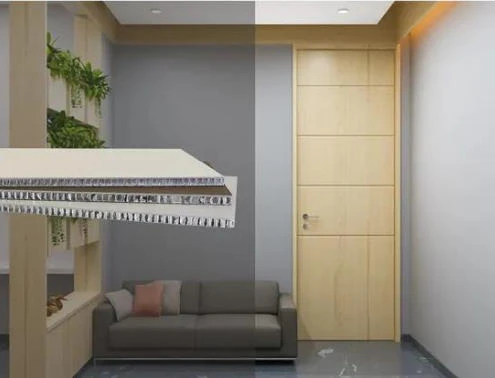

Interior walls: hotels, offices, malls, hospitals, villas
Wet areas: bathrooms, kitchens, laundries
Commercial: retail, restaurants, elevators, corridors
Renovation: fast retrofit without demolition
