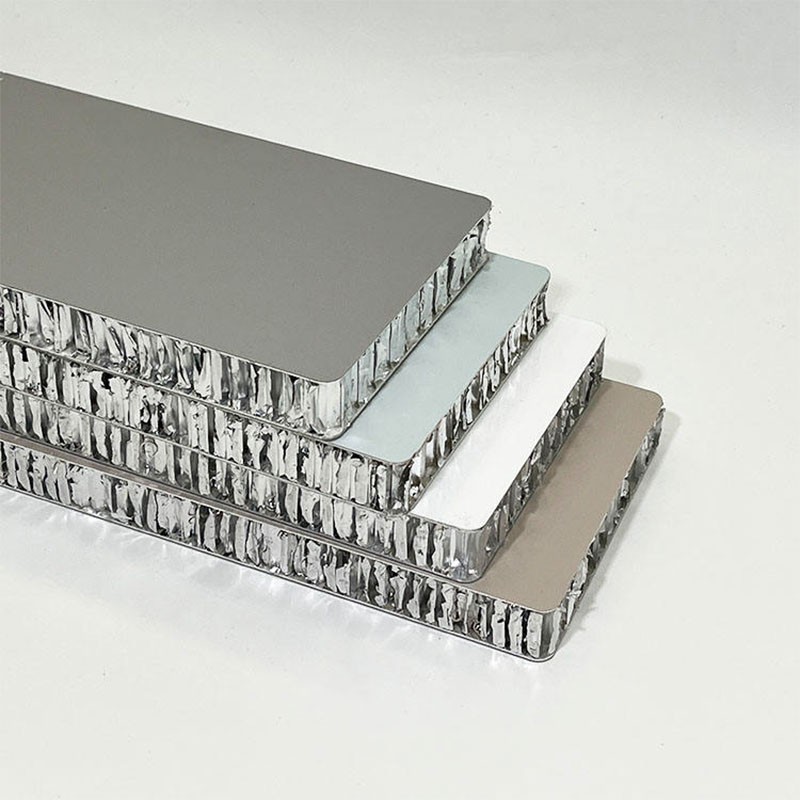

clipboard aluminum honeycomb panel
Clipboard Aluminum Honeycomb Panel (also called Clip-in / Clip-on Aluminum Honeycomb Panel) is a modular, concealed-fastener ceiling/wall panel with aluminum honeycomb core, designed for easy snap-in installation.
1. Core Structure
Face: Aluminum sheet (0.8–1.2mm), PVDF/PE coating
Core: Aluminum honeycomb (4–8mm cell)
Back: Aluminum sheet (0.6–1.0mm)
Edge: Folded/formed clip-in grooves (4 sides)
2. Clip System & Installation
Clip-in / concealed spring-clip system
No visible screws; snaps into a metal keel (grid)
Individual panel removal/replacement (no damage to adjacent panels)
Fast, dry construction
3. Key Specifications (Standard)
Size: 600×600, 600×1200, 800×1200, 1200×2400mm
Thickness: 10, 15, 20, 25mm
Surface: PVDF (outdoor), PE (indoor), wood grain, matte
Fire rating: A2 non-combustible
Weight: 3–6 kg/㎡
4. Advantages
Concealed, clean finish (no exposed fasteners)
Easy install & maintenance (clip-in, removable)
Lightweight + high rigidity (no sagging)
Excellent flatness (large panels)
Sound absorption (perforated option: NRC 0.5–0.8)
Waterproof, fireproof, durable
5. Typical Applications
Office ceilings
Airport, station, subway interiors
Shopping malls, hotels
Conference rooms, auditoriums
Clean rooms, hospitals
High-end interior wall cladding
